The single cylinder hydraulic cone crusher introduces the world's advanced design concept, the upper and lower ends of the main shaft are supported, the large stroke, and the special crushing cavity type adapted to the lamination principle, the machine has higher crushing efficiency, adopts the unique crushing cavity shape and the lamination crushing principle, increases the height, reduces the number of needle flake stones, and makes the particle size more uniform; produces the crushing effect between particles, so as to improve the crushing efficiency The finished product can bear more crushing force and larger production capacity; the proportion of cubes in the machine is obvious, and the medium and fine crushing of multiple cavity shapes can be realized only by replacing the fixed cone. The hydraulic and lubrication system with double safety control can ensure good bearing lubrication and overload protection of the main engine. A significant improvement has been made. Its intelligent control system provides a very safe and stable adjustment. In terms of its mechanical structure, working principle and control mode, the crusher can safely handle itself in case of iron crossing. The structure of single cylinder support makes the up and down adjustment and movement of the spindle assembly very simple. The operator can adjust or change the discharge port of the crusher at any time.

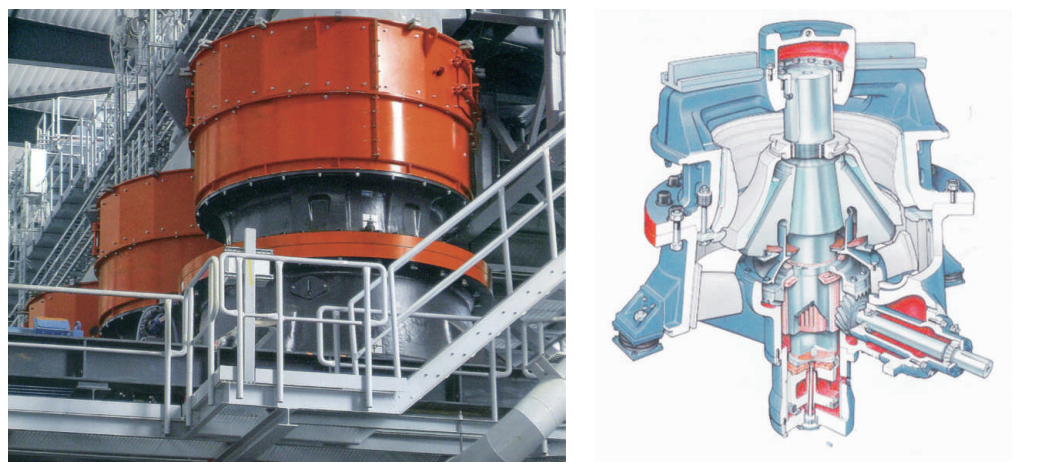

The crushing process of single cylinder hydraulic cone crusher is completed between fixed cone and eccentric rotating moving cone. The horizontal shaft of the crusher is driven by the motor through the V-belt, and the horizontal shaft drives the eccentric sleeve through the gear. The eccentric sleeve forces the spindle to rotate to produce eccentricity. The feeding material enters the crusher through the feeding port at the upper part of the crusher, and the crushed stone is discharged through the discharging port at the lower part of the crusher.

Single cylinder hydraulic cone crusher is strong and durable, easy to maintain, high production capacity, good product grain shape, excellent laminated crushing grain shape, simple operation, convenient maintenance, low wear, saving and easy to automatic control, with great reliability and flexibility, truly creating more value for users; in the case of over iron and instant stuffy car, it can hydraulic jack up, self-cleaning Dynamic discharge, greatly reducing the original spring cone crusher need to stop the trouble of manual discharge, so as to solve the problem of traditional cone crusher stop because of iron jam.
