The hammer head is an important working part of the crusher. High quality wear-resistant hammer is the basis to ensure the normal operation of the crusher. The service life of the hammer head depends on the quality of the hammer head and the characteristics of the crushing material, which also determines the working efficiency of the crusher.

The common materials of crusher hammers in mining machinery industry are as follows: high manganese steel, medium manganese steel, high chromium cast iron, low carbon alloy steel. The hammerheads made of these materials have their own characteristics and advantages and disadvantages

1. High manganese steel is the hammer head The traditional material is a typical wear-resistant steel with good toughness and strong work hardening tendency, showing superior wear resistance under impact conditions. Under the action of large impact or contact stress, the work hardening index of the surface layer is 5-7 times higher than that of other materials, and the wear resistance is greatly improved. However, the wear resistance of high manganese steel shows its superiority only when it is sufficient to form work hardening. In other cases, if the physical impact force is not enough or the contact stress is small, the wear resistance is very poor.

2. Medium manganese steel It can not only increase the price of the hammer head, but also achieve the use effect of building high manganese steel hammer head. The actual service life is increased by more than 50% compared with the construction of high manganese steel. The biggest advantage of as cast medium manganese steel hammer head is that it can remove iron filings from ore by magnetic separation, while high manganese steel has no such advantage.

3. High chromium cast iron It is a kind of wear-resistant material with excellent wear resistance, but its toughness is low and brittle fracture is easy to occur. In order to ensure the safe operation of high chromium cast iron hammer head, people have developed a composite hammer head on this basis, that is, high chromium cast-in-place cast in the head of high manganese steel or low-alloy steel, or the working part of the hammer head is made of high chromium cast iron, and the handle part of the hammer is made of carbon steel The head has high hardness and wear resistance, while the handle has high toughness.

4. Low carbon alloy steel It is mainly alloy structural steel containing chromium, molybdenum and other elements. It has high hardness, good toughness, and has a long service life. Under the same working conditions, the service life of the hammer is at least twice as long as that of the high manganese steel hammer. But its manufacturing process is complex and strict, and the quenching and tempering heat treatment of hammer head is very important. After quenching and tempering heat treatment, not only the overall tensile strength is required to be more than 850mpa, but also the considerable plasticity and toughness are required. At the same time, the iron block is strictly forbidden to enter the crusher, and a secondary iron absorption device is required at the front end of the feeding.

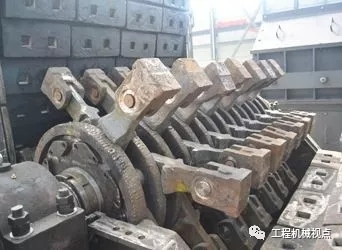

Hammer head is one of the core parts of hammer crusher. Its quality is related to the length of service life. Therefore, the hammer head is required to have not only high hardness and wear resistance, but also high toughness and impact resistance.

To sum up, we all hope to find high toughness and high hardness hammer head materials, but few hammer head materials can take into account the toughness and hardness, the two are a pair of contradictions. Therefore, when choosing the hammer material, we must fully understand the working conditions and wear mechanism, and reasonably select the hammer material.

How to choose the toughness and hardness of hammer head material, here are some tips.

1. When The higher the hardness of the material, the higher the hardness requirement of the hammer head material, and the greater the block size of the material, the higher the requirement for its toughness Therefore, we should pay attention to the size and hardness of the material to be broken, which is more important.

2. The larger the size of the crusher, the heavier the weight of the hammer head, the greater the fragmentation of the broken materials, and the greater the impact load on the hammer head. So, When choosing the material of the hammer head, the toughness of the hammer head should be ensured first, and then how to improve the hardness of the hammer head should be considered under the premise of ensuring the toughness of the hammer head 。

3. In addition to the above two points, there is also a very important point, that is, comprehensive consideration of the rationality of the process, and the cost performance of the product, as well as the market acceptance, use effect, etc.

After choosing the right hammer head, it is necessary to use and maintain the hammer head correctly in production, keep the equipment in good condition and improve the service life of hammer head.
